From Drawings to Orbit: The Urgent Need for Speed

This year, Hangzhou once again entered the “space race.”

• Changguang Satellite announced its second headquarters there, targeting production of 1,000 satellites per year.
• Meanwhile, a Zhejiang University team is preparing to launch the world’s first meter-class satellite built with a fully metal 3D-printed main structure. This milestone signals a profound shift in aerospace manufacturing.

China’s commercial space market is projected to exceed 2.5 trillion RMB this year. With satellite constellations scaling rapidly, efficiency has become the new lifeline.

The critical question for manufacturers is clear:
“From blueprint to orbit, how do you beat the clock?”

The “Slow Variables” of Satellite Manufacturing

Despite booming demand, traditional satellite manufacturing cycles remain painfully slow—often 18 to 36 months per satellite. Bottlenecks arise in three major areas:

1. Design and Review Inefficiency
   Satellites involve thousands of parts with strict requirements for strength, thermal stability, and weight. Traditional design reviews require multiple iterations, heavy manual validation, and high communication costs.
2. Overly Long Process Chains
   Production spans sheet metal, CNC machining, welding, heat treatment, composites, and surface finishing—often across different suppliers. Procurement cycles are long, coordination is complex, and errors multiply.
3. The Dual Pressure of Cost and Weight
   In aerospace, every kilogram matters. Launch costs average 100,000 RMB per kg. A 500 kg satellite means a launch bill of 50 million RMB. Without effective weight reduction, both manufacturing and launch costs become unsustainable.

This lag between demand and production speed creates the core challenge:
How to move satellite production from “yearly cycles” to “monthly cycles”?

3D Printing + Lightweighting: Rewriting Satellite Manufacturing Logic

The Zhejiang University team’s satellite, with a fully metal 3D-printed structure, achieved a 30% weight reduction. That translates into millions saved in launch costs—and, more importantly, a revolution in speed.

Why 3D printing changes the game:

• Complex geometry in one build: Parts that once required multiple machining and welding steps can now be printed in one run, reducing assembly time and error rates.

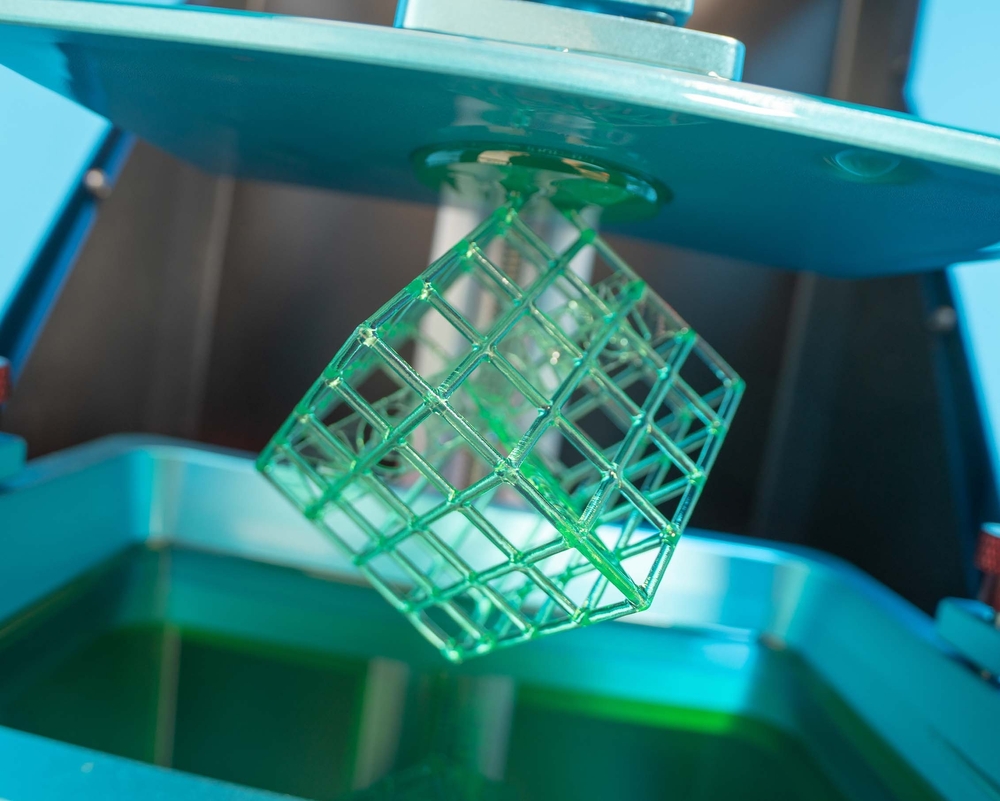

• Lightweight topology optimization: Porous metal lattice structures maintain strength while cutting significant weight.
• Agile manufacturing: No need for molds; design tweaks can move to production instantly, boosting iteration speed by 50% or more.

Traditionally, satellite design refreshes were measured in years. With additive manufacturing, that pace is shifting to months—or even weeks. The Zhejiang University team’s 50 kg satellite halved its design-to-production cycle, proving 3D printing’s disruptive value to aerospace.

Why 3D Printing Alone Isn’t Enough

While additive manufacturing shortens processing time, other bottlenecks remain: design evaluation, process matching, and supply chain coordination. This is where AI + 3D printing + cloud factories come into play.

AI + 3D Printing + Cloud Factories: The Agile Manufacturing Model

To make satellites truly “fast,” the entire manufacturing chain must be restructured. AI-driven digital platforms provide exactly that:

Upload Design → AI DFM Analysis

• Automatic model inspection for thin walls, overhangs, and risk points.
• Topology optimization algorithms recommend lightweight designs while preserving structural integrity.

Real-Time AI Quoting → 99% Faster Decisions

• Traditional manual quoting takes hours or days.
• AI algorithms generate accurate cost breakdowns in ~5 seconds, covering material, process, quantity, and finishing.
• Fast quotes enable fast decisions, eliminating long inquiry loops.

Cloud Factory Collaboration → Seamless Capacity Scheduling

• Orders are automatically matched with optimal capacity across CNC, SLS, metal printing, and finishing.
• Real-time progress tracking with standardized online quality checks.

The Result: Speed + Cost Optimization

• R&D cycles accelerated by 50%+, cutting delivery times from months to weeks.
• Lightweighting significantly reduces launch costs, saving tens of thousands per kilogram.

This model gives commercial aerospace firms “national team” agility—especially in small-batch, high-variety, fast-turnaround scenarios.

The New Battleground: Speed of Smart Manufacturing

Hangzhou is quickly becoming a commercial aerospace hub:

• West Lake District is now a leading commercial space pilot zone.
• The “Satellite Supermarket” project provides one-stop access to 200+ aerospace components.
• Large-scale 3D printing facilities and Changguang’s “super factory” are under construction.

The competitive edge is shifting from “can you build” to “how fast can you build.” AI-powered intelligent manufacturing will determine which aerospace companies seize the future.

When batch-customized satellites become reality, it’s clear: the definition of speed in aerospace manufacturing must be rewritten.

Get a Free Quote!

Leave your contact details, or directly visit our online quoting platform to experience the future of material selection and production. Get expert material evaluations, tailored DFM analysis, and fast 24-hour production turnaround.

• Free Quote: Upload your designs, and our AI-powered engine will generate a custom quote in seconds.
• Talk to an Expert: Connect with one of our engineers via WhatsApp for immediate assistance.

Please enable JavaScript in your browser to complete this form.

Name *

Company or Organization *

Email *

Phone *

Address

What service(s) are you interested in? *

Please tell us the service you would like quoted?

Submit

The Arctic K9 Robotics team in Finland is developing a quadruped robotic dog designed for extreme environment inspections—Frost-Runner.
It must patrol snow-covered terrain at -30°C, slippery rocks, and wind-swept ports for extended periods, maintaining agility while ensuring its joint modules function reliably in mud, ice, and dust.

The real challenge is not just to make it move, but to make it keep moving.
The most critical components are the protective housing and bearing seat of the joint drive module, which determine the robotic dog’s durability and energy efficiency during continuous six-hour missions.

02. From “Laboratory Perfection” to “Field Survival”

Arctic K9’s initial design performed excellently in the lab: fully sealed titanium housings with imported fluororubber seals provided outstanding water and dust resistance.

However, during low-temperature shock tests, the fluororubber seals hardened and cracked, allowing water ingress that froze, causing torque losses up to 20%.
Worse, the titanium housings—though strong—required long machining times, high costs, and slow delivery, unsuited to the team’s testing pace.

The team realized that in extreme environments, design must balance strength and toughness, or even the most perfect lab performance won’t hold in the field.

03. From “Machined Parts” to “Environment-Adapted Solution”

After an industry introduction, Arctic K9 engaged Leanplans (立谱智造).

We received their CAD files and ran a preliminary DFM evaluation using our AI Multi-Agent system. Our engineering team then held remote sessions with the client, focusing on weather resistance and maintainability.

We proposed three core optimizations:

1️⃣ Dual-Layer Armor: Metal + Engineering Plastic

• Outer layer: high-impact PEEK (injection-molded), resistant to mud, water, and low-temperature shocks.
• Inner layer: 17-4PH stainless steel precision casting for rigidity and corrosion resistance.

2️⃣ Low-Temperature Sealing System

• Replaced fluororubber with polyurethane elastic seals (flexible down to -60°C).
• Added PTFE coating at seams to reduce friction and prevent binding.

3️⃣ Modular Quick-Release Structure

• Split bearing seat with stainless steel threaded inserts for on-site tool-free disassembly.
• Reduced maintenance time by 70%.

04. Speed Isn’t About “Rushing”—It’s About “Reducing Validation Time”

Once the design was finalized, we used three parallel production processes for different components to meet delivery schedules:

• Outer housing (PEEK): high-temperature injection molding + anti-icing coating
• Inner support (17-4PH stainless steel): precision casting + high-speed CNC finishing, heat-treated for strength
• Bearing seat: five-axis CNC machining, positioning accuracy ±0.015 mm
• Seals: custom polyurethane molding

The full set of samples was delivered within 10 working days. Arctic K9 tested the robotic dog continuously in snow and ice for 96 hours, achieving:

• Joint torque stability +18%
• Energy consumption -9%
• Maintenance efficiency doubled

05. It’s Not Just About Moving—It’s About Lasting in Harsh Environments

For extreme-task robotic dogs, components aren’t meant to merely function—they must endure the harshest conditions.

Leanplans not only delivered parts but contributed to protection strategy, material selection, and maintainability, boosting both performance and durability.

We are now providing one-stop services from structural review to multi-process prototyping for quadruped robots, specialized inspection devices, and rescue robots worldwide.

If your project faces extreme environment design challenges, send us your CAD files—your next robotic dog could run longer and more reliably.

Get a Free Quote!

Leave your contact details, or directly visit our online quoting platform to experience the future of material selection and production. Get expert material evaluations, tailored DFM analysis, and fast 24-hour production turnaround.

• Free Quote: Upload your designs, and our AI-powered engine will generate a custom quote in seconds.
• Talk to an Expert: Connect with one of our engineers via WhatsApp for immediate assistance.

Please enable JavaScript in your browser to complete this form.

Name *

Company or Organization *

Email *

Phone *

Address

What service(s) are you interested in? *

Please tell us the service you would like quoted?

Submit

In this article, I’ll break down these four dimensions in depth and share how you can leverage the Leanplans platform to achieve high-strength, cost-efficient FDM printed parts—right from the first build.

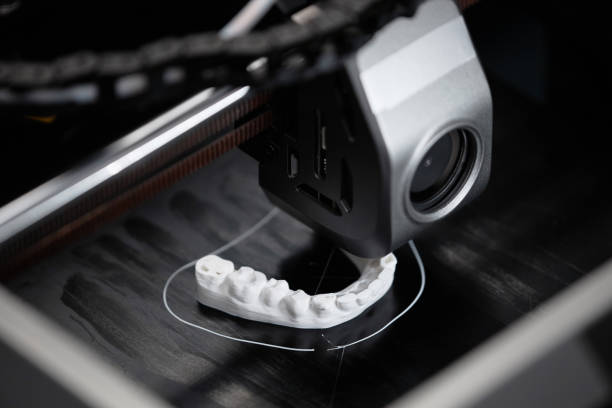

1. Precision in Design: From Wall Thickness to Fine Features

In the world of FDM printing, design is the foundation—it determines the success or failure of every step that follows. Over the years, I’ve debugged hundreds of models, and the most common mistakes are misjudgments in wall thickness and tiny features.

Take a standard 0.4 mm nozzle as an example: three times the nozzle diameter (~1.2 mm) is the “sweet spot” balancing strength and material efficiency. Wall thickness below 0.8 mm often leads to warping and poor layer adhesion, while going beyond 2 mm dramatically increases print time and risks delamination or cracking due to internal stress.

For load-bearing parts, I recommend using finite element analysis (FEA) to reinforce localized stress zones rather than thickening the entire model. Cross-hatch infill at 20–30% density is another cost-saving trick—sufficient for non-critical areas while cutting down material and print time.

Seemingly small details such as pins, bosses, and embossed text often become weak points. Pins under 2 mm in diameter tend to snap during post-processing or assembly, so I always keep diameters ≥2 mm. Likewise, embossed text thinner than 0.8 mm or shorter than 1.5 mm looks crisp on-screen but fails in reality. In practice, I slightly oversize these features in CAD, then select high-precision mode on the Leanplans platform to ensure clean results without extra finishing.

2. Structural Optimization: Controlling Overhangs and Preventing Warping

Because FDM is a layer-by-layer process, it enables complex geometries but is also prone to issues with overhangs and large flat surfaces. Overhangs greater than 45° often sag or leave stringy residue. Instead of relying heavily on supports, it’s smarter to integrate gentle slopes or chamfers in the design, giving each layer a proper foundation. For bridges over 5 mm, I usually raise the ends slightly (0.2–0.5 mm) and add tiny pillars to reduce drooping.

Warping, on the other hand, stems from uneven cooling and large planar areas. A flat part sized 120 × 120 mm often curls at the edges during the first layer. My go-to strategy: split large planes into smaller modules with rounded edges, or add a 3–5 mm brim or skirt to improve adhesion. With shrink-prone materials like ABS, I design rib-like “fences” around edges to disperse stress from thermal contraction.

This “modularization + reinforcement + adhesion” approach keeps even 200 × 200 mm flat parts warp-free, significantly improving first-pass yield.

3. Smart Supports and Print Orientation: Less Is More

Supports are both a savior and a nuisance in FDM printing. Leanplans offers tree supports and dissolvable supports, which preserve structural reliability while minimizing post-processing headaches. Before finalizing a build, I experiment with multiple orientations in slicing software to identify a minimal-support setup. Often, a simple 10° rotation reduces support needs by 20% or more.

Print orientation matters as much as support:

• Layer adhesion is weakest along the Z-axis, at only ~60–70% of XY strength. Place tension- or bending-critical features parallel to the print bed.
• Surface smoothness improves when curves and slopes are aligned parallel to the build plate.
• Holes look cleaner when oriented along Z, reducing the need for supports.

This three-step approach—rotate, minimize supports, set orientation—produces cleaner parts, reduces post-processing, and boosts strength where it counts.

4. Materials and Process: The Final Step to Reliable Prints

Even the best design will fail if the process parameters are off. Poor temperature control causes stringing, delamination, or nozzle clogs. To solve this, Leanplans’ AI multi-agent system automatically matches nozzle temperature, print speed, and fan settings based on model geometry and material choice:

• PLA: 200–210 °C nozzle, 50–60 °C bed
• PETG: 230–240 °C nozzle, 70–80 °C bed
• ABS: ≥100 °C heated bed + enclosed chamber for stable bonding

For materials, PLA and PETG are “low-warp” favorites, while nylon or carbon fiber composites deliver higher strength and thermal resistance. Leanplans provides a full range of engineering-grade filaments and recommends material-process pairings tailored to your part’s function. With high-precision sensors and real-time camera monitoring, the system halts or alerts if deviations occur—ensuring every part meets design intent.

Conclusion: The Complete FDM Success Formula

These four rules—precision design, structural optimization, smart support and orientation, and material-process synergy—form a closed loop for FDM success. On the Leanplans online platform, you simply upload your CAD file, and the system takes care of instant quoting, optimized slicing, production scheduling, and quality tracking. With the combination of AI and over a decade of practical know-how, your designs are transformed into high-strength, cost-efficient printed parts, without the common pitfalls.

In your next project, apply these principles to achieve a perfect balance of efficiency, durability, and cost-effectiveness—and let Leanplans help you get it right the first time.

Get a Free Quote!

Leave your contact details, or directly visit our online quoting platform to experience the future of material selection and production. Get expert material evaluations, tailored DFM analysis, and fast 24-hour production turnaround.

• Free Quote: Upload your designs, and our AI-powered engine will generate a custom quote in seconds.
• Talk to an Expert: Connect with one of our engineers via WhatsApp for immediate assistance.

Please enable JavaScript in your browser to complete this form.

Name *

Company or Organization *

Email *

Phone *

Address

What service(s) are you interested in? *

Please tell us the service you would like quoted?

Submit

Leading enterprises are not adopting AM simply to “try something new.” They are doing so to achieve tangible, measurable returns. Their goals are clear:

• Increase supply chain flexibility and eliminate long lead times
• Reduce inventory and procurement costs
• Break through traditional process limitations to achieve performance upgrades

Rebuilding Supply Chain Resilience

For decades, supply chains in manufacturing have pursued efficiency and lean principles, but multiple crises have exposed their fragility. Geopolitical instability, natural disasters, and raw material shortages often leave production stalled for months.

The advantage of AM lies in its ability to produce locally and manufacture on demand. In aerospace, for example, a well-known engine manufacturer faced an 18-month lead time for high-temperature nozzles, which forced them to pause testing. By introducing additive manufacturing, delivery time was shortened to just 2 months. More importantly, the company regained control of its production, reduced dependence on unstable external suppliers, and protected sensitive design data.

From “Technical Capability” to “Strategic Necessity”

Technology adoption often follows a trajectory: capability → stability → necessity. At first, questions were: How fast can it print? What materials are available? How complex can the geometry be?

Today, leading manufacturers no longer ask “Can AM do this?” Instead, they ask:
“Which business problems can AM solve for me?”

At Leanplans, we encourage clients to think in reverse — from needs to solutions:

• Performance goals: Which specifications cannot be achieved by traditional processes?
• Efficiency breakthroughs: How can AM remove production bottlenecks and improve durability and consistency?
• New opportunities: How can AM unlock new possibilities in design freedom, supply chain agility, or lifecycle management?

This mindset shift — from “Can it be made?” to “Why should it be made this way?” — turns AM into a true strategic weapon, accelerating time-to-market and creating value that traditional manufacturing cannot reach.

Embedding into the Mainstream Ecosystem

Five years ago, AM was still experimental. Today, it has become the preferred process for high-performance, complex components. But isolating AM as a standalone technology is no longer enough. Integrating AM with CNC machining, injection molding, and die casting is the way to build a more flexible and efficient hybrid manufacturing ecosystem.

At Leanplans, we go beyond offering additive manufacturing services. Through our self-developed AI quoting engine and DFM (Design for Manufacturability) evaluation system, we help clients:

• Quote in seconds: Instantly assess processes, materials, and finishing options
• Intelligently optimize design: Use AI to identify manufacturability risks early
• Flexible scheduling: Match orders to real-time capacity, shortening lead times

Act Fast, Lead the Future

Additive manufacturing is no longer just the future — it is already reshaping industrial production today. Companies that embrace AM early and integrate it into their broader manufacturing strategy will gain advantages in supply chain stability, cost control, and product innovation.

The question is no longer “Should we use it?” but rather:
“Who will act first — and who will be left behind?”

About Leanplans

Leanplans is an intelligent manufacturing platform focused on flexible production of non-standard parts. We integrate CNC machining, 3D printing (SLA/SLS), die casting, and injection molding, combined with AI-powered quoting and DFM analysis. This enables us to deliver one-stop solutions from design to production, helping customers achieve speed, efficiency, and reliability at scale.

Act now — stay ahead of the competition!

Get a Free Quote!

Leave your contact details, or directly visit our online quoting platform to experience the future of material selection and production. Get expert material evaluations, tailored DFM analysis, and fast 24-hour production turnaround.

• Free Quote: Upload your designs, and our AI-powered engine will generate a custom quote in seconds.
• Talk to an Expert: Connect with one of our engineers via WhatsApp for immediate assistance.

Please enable JavaScript in your browser to complete this form.

Name *

Company or Organization *

Email *

Phone *

Address

What service(s) are you interested in? *

Please tell us the service you would like quoted?

Submit

From the hand tools of ancient craftsmen, to the mechanized production of the Industrial Revolution, to today’s wave of digital transformation — manufacturing has always been driven by innovation. Machining, as one of the core pillars of modern manufacturing, is undergoing a profound shift.

Today, it’s not just about speed and precision. Manufacturers must also prioritize flexibility, responsiveness, and cost control.

Leanplans has spent years working deeply in manufacturing, seizing the opportunities of AI to create an end-to-end solution that spans design review, instant quoting, production scheduling, and shop floor management. In this article, we’ll look at several real-world cases that illustrate how Leanplans AI is helping companies achieve greater efficiency, agility, and competitiveness.

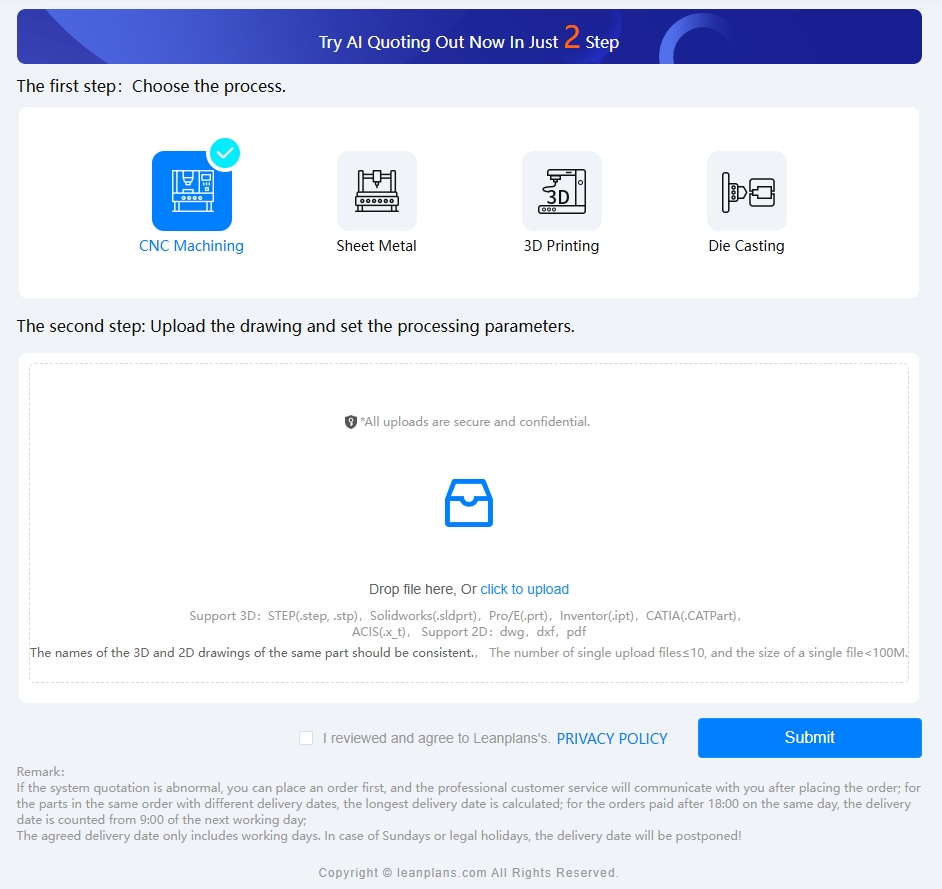

Case 1: 5-Second AI Quoting That Speeds Up Decision-Making

In custom parts manufacturing, quote speed and accuracy can make or break a project’s timeline. Traditionally, quoting requires manually analyzing CAD drawings, considering materials and processes, and running calculations — a time-consuming and error-prone workflow.

Leanplans developed an AI quoting engine that uses deep learning and image recognition to automatically parse 2D and 3D drawings, extract key dimensions and process data, and deliver an accurate quote in just 5 seconds.

A consumer electronics client once struggled with long quote cycles that slowed down product launches. After adopting Leanplans AI, their quote turnaround dropped from two days to just seconds — accelerating decision-making, boosting iteration speed, and cutting time-to-market.

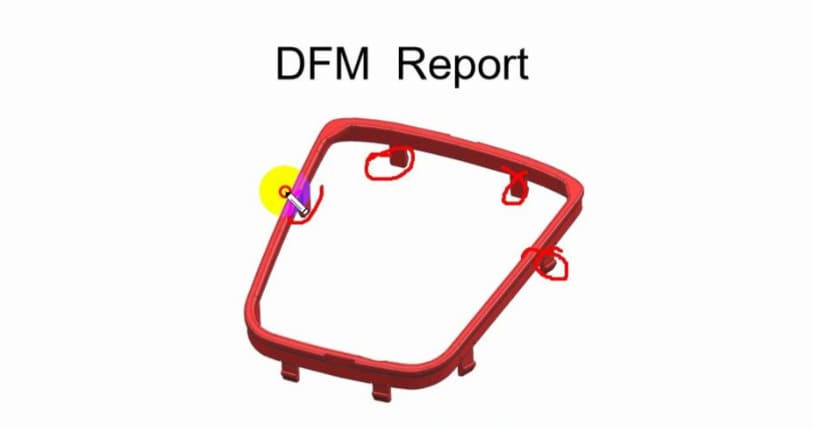

Case 2: AI-Driven DFM Reviews to Prevent Costly Mistakes

The manufacturability of a design directly impacts project success. Poor designs can lead to tooling rework, increased machining difficulty, or even complete product scrap — all of which waste time and money.

Leanplans built an AI-powered Design for Manufacturing (DFM) system that automatically flags risks such as thin walls, extreme tolerances, and geometric interferences. Beyond detection, the system also recommends design optimizations aligned with real manufacturing processes.

For example, a new energy company used Leanplans AI to review a motor housing design. The system detected wall thickness risks that could compromise mold durability. By adjusting the design early, the client avoided tooling rework, cut production delays, and reduced costs by over 30% — ensuring on-time delivery.

Case 3: Intelligent Scheduling for Flexible, On-Time Production

The new normal in manufacturing is high-mix, low-volume, short lead-time. Traditional scheduling, reliant on human judgment, is inefficient and prone to bottlenecks.

Leanplans AI developed a smart scheduling engine that integrates data from multiple processes and machines, dynamically optimizing production plans in real time. It balances workloads across CNC, sheet metal, and additive manufacturing, while prioritizing deadlines.

In one case, an overseas automotive client required 50 different parts within just 10 days. Using Leanplans AI scheduling, the factory coordinated CNC machining, sheet metal, and 3D printing tasks in parallel — completing the order three days ahead of schedule and significantly improving customer satisfaction.

AI in Manufacturing: More Than Just Efficiency

These cases demonstrate how Leanplans AI delivers value across multiple dimensions:

• Cost and efficiency – Instant quoting and AI-based DFM reduce manual labor, cut errors, and save both time and money.
• Quality – Early design validation improves part accuracy and product reliability.
• Speed – Smart scheduling ensures flexible production and faster delivery cycles.
• Digital collaboration – Leanplans’ online platform connects design, quoting, ordering, and production into a transparent, streamlined workflow.

Conclusion: Leanplans and the Future of Smart Manufacturing

As AI continues to mature, intelligent transformation in manufacturing is no longer optional — it’s essential. Leanplans combines technical expertise with industry experience to deliver solutions across quoting, design validation, and scheduling, already proven in sectors such as consumer electronics, new energy, medical devices, and automotive.

Looking forward, Leanplans will expand its AI capabilities into quality inspection, predictive maintenance, and digital twin applications — enabling manufacturers to achieve higher efficiency, greater flexibility, and smarter operations.

Get a Free Quote!

Leave your contact details, or directly visit our online quoting platform to experience the future of material selection and production. Get expert material evaluations, tailored DFM analysis, and fast 24-hour production turnaround.

• Free Quote: Upload your designs, and our AI-powered engine will generate a custom quote in seconds.
• Talk to an Expert: Connect with one of our engineers via WhatsApp for immediate assistance.

Please enable JavaScript in your browser to complete this form.

Name *

Company or Organization *

Email *

Phone *

Address

What service(s) are you interested in? *

Please tell us the service you would like quoted?

Submit

“Day after day, six or seven hours would be wasted on the same repetitive tasks, yet we never seemed to deliver a satisfactory result,” recalls the founder. “The very tools that were supposed to help us became a burden. The anxiety never went away.”

When late nights and broken processes piled up, a new idea emerged:

“If no existing tools can truly serve small and mid-sized manufacturers, then we’ll just have to build our own.”

That idea sparked the creation of a cross-disciplinary team: AI researchers from Harbin Institute of Technology, industrial internet experts, and seasoned manufacturing engineers. With deep expertise in platform development, multimodal AI models, CNC machining, and flexible production, the team brought both academic research and real-world engineering into one solution.

At the center is Professor Shuhan Qi — a leading expert in multimodal AI from Harbin Institute of Technology — who provided the scientific backbone for what became Leanplans AI, a full-stack quoting and order management solution for precision manufacturers.

Born Out of Necessity

Back then, the factory floor was often quiet. Orders were scarce.

Xiao Tang, a sales manager, remembers staring at piles of contracts from B2B platforms, expensive SaaS subscriptions, and lists of “accurate” customs data. None of it worked. Leads were outdated. Emails went unanswered. Buyers were already locked into suppliers for years.

“Six hours a day were spent verifying emails and sending outreach messages — and when replies came, they were mostly from freight forwarders or scammers,” says Tang.

After another month of wasted effort, the team came to a painful realization: the only way forward was to build a tool that solved their own pain points.

Four Pain Points Every Factory Knows

1. Manpower stretched thin
   Overseas orders bring higher margins, but quoting teams had to juggle time zones and dozens of RFQs at once. Hiring more staff wasn’t sustainable — training was slow, costs kept rising, and productivity gains were minimal.
2. Scattered, messy data
   Customer requests arrived via emails, PDFs, spreadsheets, WhatsApp, even Facebook groups. Manual handling led to duplicate quotes, missing parameters, and mismatched revisions — mistakes that damaged trust and delayed deliveries.
3. ERP can’t cover quoting
   While ERP systems managed production scheduling and quality control, they couldn’t handle RFQ parsing or bilingual quote generation. Sales and production data stayed disconnected, creating friction and inefficiency.
4. Static websites don’t convert
   The company website showed only certifications, equipment lists, and a handful of cases. No interactive demos, no instant quotes. Buyers couldn’t see the factory’s true capabilities, and site visitors rarely turned into real leads.

Building CNC Factory Own AI Platform

From these frustrations came Leanplans AI, a custom-built solution that integrates quoting, DFM analysis, and client engagement into one seamless system. The philosophy was simple:

Help factories stay competitive in the “small-batch, fast-turnaround” era.

• AI-powered RFQ parsing
• • Handles multiple file formats (CAD, PDF, Excel)
  • Automatically extracts material, size, tolerance, surface finish, quantity, and lead time
  • Instantly generates structured tasks, eliminating manual errors
• 5-second AI quoting
  • Live integration with raw material price indexes
  • Built-in machine-hour, labor, and energy cost models
  • Delivers accurate quotes within 5 seconds, with over 90% precision
• Unified order management
  • Quoting, approval, follow-ups, and scheduling in one system
  • Real-time order visibility with full history tracking
  • Data loops that enable management to make faster, smarter decisions
• Interactive bilingual website
  • Customers can upload CAD files and experience instant quotes
  • Videos showing five-axis machining, fixture design, and finishing processes
  • Case library with global enterprise references to boost credibility and conversions

Real Impact, Real Results

Leanplans AI isn’t just a tool — it’s a full-chain AI manufacturing solution powered by a proprietary MoE vertical model that blends multimodal AI with deep manufacturing know-how.

In just three months of deployment, one partner factory saw:

• 60% growth in overseas orders
• 35% reduction in labor costs
• Higher conversion rates thanks to instant bilingual quoting and transparent order tracking

And the feedback from international buyers has been enthusiastic:

• “From CAD upload to final quote in under five seconds — unbelievable!”
• “The entire procurement process is smoother than any platform I’ve used before.”

Leanplans AI was not born in a lab. It was built on the factory floor, forged under pressure, and refined through real pain points. Today, it stands as proof that small and mid-sized CNC manufacturers don’t have to be left behind in the AI era.

We’ve opened parts of the platform for free trials — inviting more CNC factory and global sourcing teams to experience a smarter, faster way to win overseas business.

Get a Free Quote!

Leave your contact details, or directly visit our online quoting platform to experience the future of material selection and production. Get expert material evaluations, tailored DFM analysis, and fast 24-hour production turnaround.

• Free Quote: Upload your designs, and our AI-powered engine will generate a custom quote in seconds.
• Talk to an Expert: Connect with one of our engineers via WhatsApp for immediate assistance.

Please enable JavaScript in your browser to complete this form.

Name *

Company or Organization *

Email *

Phone *

Address

What service(s) are you interested in? *

Please tell us the service you would like quoted?

Submit

Whether you are a startup founder or an experienced engineer or designer, if you are still relying on traditional prototyping methods, you may already be a step behind. This article will systematically explain why more and more companies choose 3D printed prototypes, what 3D printing technologies are available, which ones are best suited for rapid prototyping, and—most importantly—how to choose the right prototyping method in 2025 to seize the lead in product iteration.

What Are Rapid Prototyping and Functional Mockups?

Before diving in, let’s clarify a few concepts:

• Rapid Prototyping: The process of quickly producing a product model from digital designs, mainly to validate structure, function, and assembly.
• Functional Mockup: A specific form of rapid prototyping where a physical model closely resembling the final product is created for testing, demonstration, or small batch pilot production.
• 3D Printing: One of the most popular means to achieve rapid prototyping, offering mold-free, flexible, and efficient production—especially suitable for small batches and diverse needs.

Traditional CNC machining offers high precision but involves significant programming time and cost. Silicone molding suits batch production but lacks flexibility. Compared to these, 3D printing has nearly no barriers, supports complex geometries and various materials, and aligns perfectly with today’s fast trial-and-error development approach.

Why Are More Companies Choosing 3D Printed Prototypes?

This is not just a “convenience” choice, but a necessity driven by competition.

• No tooling required, lower upfront cost
  For startups frequently changing designs, tooling costs are a trap. 3D printing creates parts on demand—modify your design and print immediately without mold constraints.
• Supports complex structures with high design freedom
  Traditional methods are limited by tool paths or mold shapes. 3D printing enables freeform geometry, ideal for complex shapes, hollow parts, and skeletal supports.
• Short turnaround, from drawing to sample in as fast as 24 hours
  Using SLA resin printing, white models can reach ±0.1mm accuracy with smooth surfaces, perfect for visual verification. Through Leanplans online platform, uploading 3D files yields instant quotes and same-day production starts.

Mainstream 3D Printing Technologies: Which Fits Your Needs?

Common 3D printing methods for prototyping include:

Technology	Principle	Advantages	Suitable Applications
SLA	Photopolymer curing	High precision, smooth finish	Visual models, transparent parts, displays
SLS	Nylon powder sintering	Strong, no support structures needed	Structural parts, clips, functional testing
MJF	Multi-jet fusion	Fast build, fine details	Small batch pilot runs, functional components

If unsure which to choose, consider SLA for shape verification, SLS for structural testing, and MJF for functional and production-ready parts. Beyond these, metal 3D printing (SLM/EBM) represents a high-value, technically advanced option increasingly used in rapid prototyping.

Metal 3D Printing Breaks New Ground

Previously, metal prototypes depended on CNC machining or casting—both costly and limited, especially for hollow, heat-dissipating, or lattice structures that are hard to form in one piece. Metal 3D printing overcomes these:

• High precision microstructures: SLM laser melting with 50μm layer thickness meets precision mechanical needs

• Material diversity: Stainless steel, aluminum alloys, titanium, Inconel high-temp alloys, etc.

• Functional use: Printed metal parts approach forging strength, enabling direct end-use testing or short-term applications

With domestic metal printers and lower powder costs, metal 3D printing is no longer exclusive to aerospace. More hardware startups now prototype motor housings, module brackets, and connectors with this technology.

Right Materials Make Prototyping More Effective

Choosing the right material often matters more than the process. 3D printing materials affect both appearance and whether samples can be used for functional or end-use testing. Common prototyping materials include:

Non-metal materials (SLA/SLS/MJF):

Material Type	Supported Process	Characteristics	Application Examples
Photopolymer Resin	SLA	Smooth surface, high transparency	Visual models, display parts, medical models
White Resin (ABS-like)	SLA/MJF	ABS-like strength, paintable	Housings, structural parts, assembly verification
Nylon 12 (PA12)	SLS/MJF	High strength, wear-resistant, tough	Functional structural parts, small batch production
Elastomers (TPU/TPE)	SLS	Compressible, flexible, rubber-like	Covers, protective pads, flexible connectors

Metal materials (SLM/EBM):

Material	Characteristics	Typical Use
Stainless Steel (316L)	Corrosion resistant, strong, machinable	Fixtures, mechanical housings
Aluminum Alloy (AlSi10Mg)	Lightweight, good heat dissipation	Heat sinks, lightweight covers
Titanium Alloy (Ti6Al4V)	High strength-to-weight, heat resistant	Aerospace parts, medical implants
Inconel 718	High-temp corrosion resistance	Engine parts, high-temp modules

Material Selection Tips:

• For visual display: photopolymer or white ABS-like resin

• For structural validation: PA12 nylon or black/white MJF resin

• For flexible parts/covers: TPU elastomer

• For functional testing: metal prints like 316L stainless steel or titanium

AI + 3D Printing: Prototyping Enters the Smart Era

Traditional prototyping workflows—design → structural confirmation → material selection → sourcing multiple vendors → manual communications → quoting → ordering → production → quality control → delivery—take weeks to a month.

Today, AI-driven rapid prototyping solutions drastically shorten this. From file upload, Leanplans’ AI multi-agent “experts” automatically:

• Analyze structure complexity and generate DFM reports

• Recommend suitable processes (SLA, SLS, etc.)

• Suggest appropriate materials (ABS-like, nylon, elastomers, etc.)

• Generate quotes and delivery times in 5 seconds for instant ordering

What does this mean? Your designer sketches in the morning, sees a physical model by evening, and can present it in a review meeting the next day. This speed is the ultimate goal for hardware innovators today.

Speed of Prototyping = Accelerator of Product Success

The era of “slow and precise” is over. Speed and flexibility are the true weapons of hardware innovation, and 3D printing is the “turbocharger” in this race.

If you want to go from idea to market faster, rethink your prototyping method. Are you still waiting in production queues? Are high tooling costs blocking your iterations?

It’s time to try a one-stop 3D printing prototyping platform. Upload your files, get smart quotes, and receive rapid delivery—all starting within minutes. Let 3D printing be the first step toward your product’s success.

Get a Free Quote!

Leave your contact details, or directly visit our online quoting platform to experience the future of material selection and production. Get expert material evaluations, tailored DFM analysis, and fast 24-hour production turnaround.

• Free Quote: Upload your designs, and our AI-powered engine will generate a custom quote in seconds.
• Talk to an Expert: Connect with one of our engineers via WhatsApp for immediate assistance.

Please enable JavaScript in your browser to complete this form.

Name *

Company or Organization *

Email *

Phone *

Address

What service(s) are you interested in? *

Please tell us the service you would like quoted?

Submit

Fictiv is widely recognized as a key driver of online and automated part manufacturing. One of its core technologies is an AI-based pricing and manufacturing assistance system. This acquisition sends a clear signal: the application of AI in manufacturing is no longer just a concept or a marketing buzzword. It is now deeply embedded in real business workflows and delivering measurable commercial value.

01. How Far Has AI Come in Manufacturing?

To help industry professionals better understand the current market landscape and how AI is being implemented in the manufacturing of custom parts, we conducted a comparative review of three representative digital manufacturing platforms—Fictiv, Xometry, and China-based Leanplans.

The comparison focuses on three core processes: design, quoting & ordering, and DFM (Design for Manufacturing) analysis.

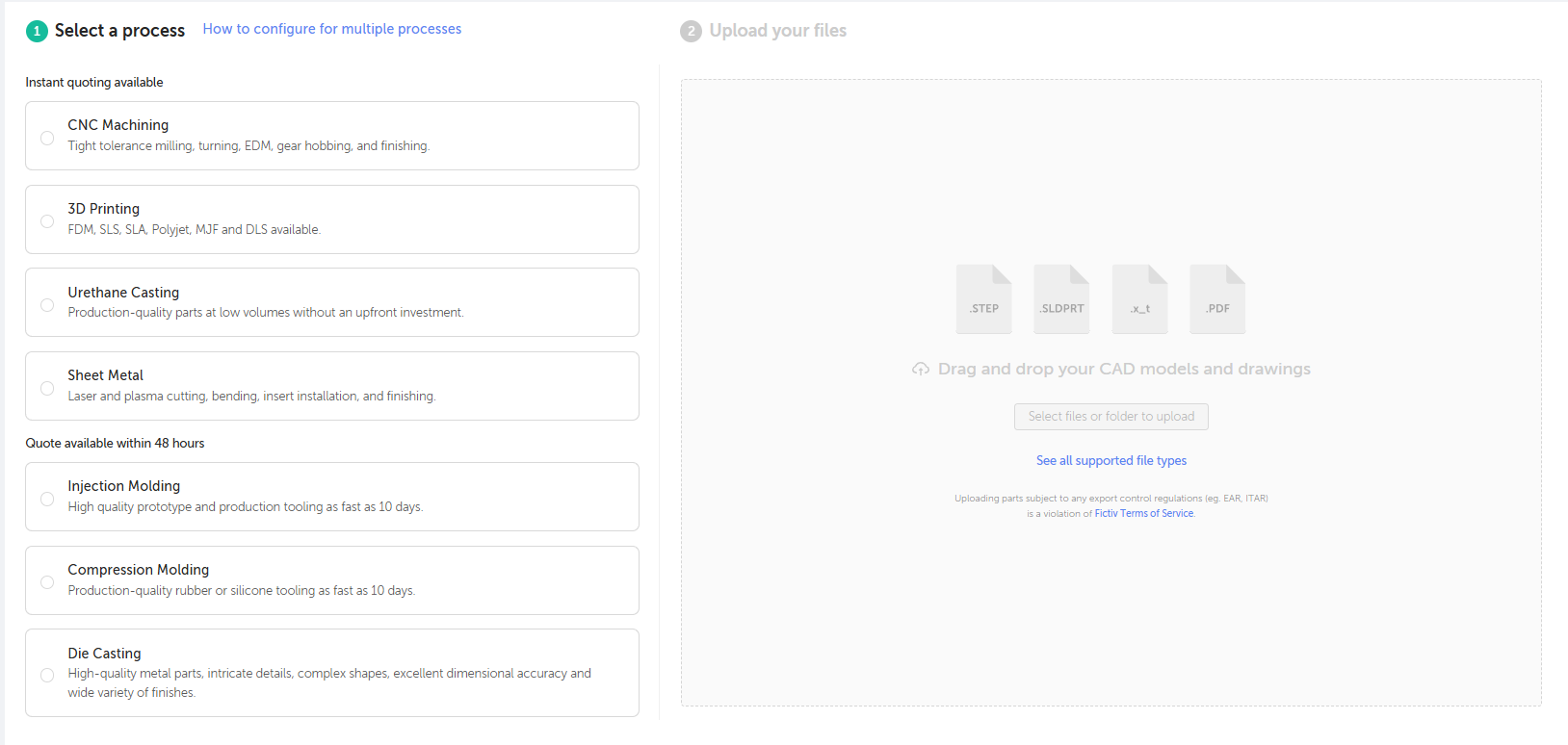

We used the same batch of 2D and 3D files and uploaded them to the AI quoting systems of each platform. We then recorded the feedback results, response times, and user experience. The outputs were compared against manual estimates. For the DFM analysis, we reviewed process feasibility, material selection, and tolerance recommendations.

Evaluation Criteria:

• Design Stage: Rendering and 3D modeling capabilities
• Transaction Stage: AI quoting (formats supported, logic behind pricing), ordering usability
• DFM Evaluation: Process feasibility, material machinability, tolerance logic
• Hands-on Testing: User experience across the full flow from design to order

02. Design Capability Comparison

In the design stage, neither Fictiv nor Xometry currently offers instant rendering or CAD modeling features. Customers must prepare their own drawings and technical data before accessing the quoting tool.

Leanplans, on the other hand, provides an early-stage 3D modeling tool that can generate standard 3D models from simple sketches, structural descriptions, or 2D engineering drawings. The AI can be manually overridden and adjusted. Though still being refined, this feature has already been used in multiple prototyping projects, helping clients go from sketch to 3D model in minutes—especially valuable in early product development.

Screenshot: Leanplans 3D modeling interface

03. Practical Testing

1. Quote Accuracy

Sample Set: 9 parts (3 CNC, 3 3D printed, 3 sheet metal)
Results:

• Fictiv: ±100% deviation from manual estimate
• Xometry: ±40% deviation
• Leanplans: Within ±20% deviation

Fictiv and Xometry both use deep learning to analyze 3D models, referencing historical orders and adding manual validation to finalize pricing. However, in our tests, quotes were often delayed and imprecise—Fictiv in particular had a deviation around +100%, and Xometry around ±40%. Both platforms took 40–60 seconds to return results.

Leanplans leverages a manufacturing-oriented pricing engine, factoring in machine specs, processes, and material cost. It supports both 2D and 3D file formats and generates quotes in just 5 seconds, with significantly higher accuracy.

Screenshot: Leanplans quoting interface

2. Response Time

Leanplans has optimized both model lightweighting and parallel computation to achieve 12x faster response than Fictiv.

3. Usability

• Fictiv and Xometry only support 3D formats for AI quotes—2D requires manual intervention.
• Leanplans accepts both 2D and 3D uploads and auto-detects formats.

While Fictiv and Xometry require users to convert 2D drawings to 3D before use, Leanplans supports one-click uploads and provides a visual breakdown of costs by material and finish. Users can click on questionable items in the quote to see detailed reasoning and get instant optimization suggestions—dramatically improving decision efficiency.

04. Pros & Cons Summary

Fictiv and Xometry excel at global supply chain orchestration, making them suitable for large-volume, multi-region projects. But their AI capabilities still rely heavily on human operators and pre-defined rules.

Leanplans, meanwhile, is built around AI from the ground up, excelling in local process modeling, quoting speed, and DFM analysis—making it ideal for fast, flexible prototyping and short production cycles.

05. Different DNA, Different Paths

At the core, the three platforms differ not just in features, but in their foundational DNA.

Fictiv and Xometry originated as supply chain networks. Their AI is a tool for streamlining operations, especially in routing and capacity matching.

Leanplans is an AI-native company. Its systems are designed to interact with customers—from sketches, to files, to pricing, to feedback. The goal is to shorten R&D cycles and empower engineers and designers with intelligent tools.

This difference shapes their growth logic:

• Fictiv/Xometry: AI as a backend tool for better resource coordination

• Leanplans: AI as a frontend solution for smarter decision-making

Over time, these paths may converge. But right now, they represent two distinct trajectories for AI in manufacturing: one focuses on supply chains, the other on user experience.

The real battleground lies in data feedback loops. Whoever builds the strongest cycle of data-driven model training, customer usage, and continuous feedback will lead the next wave of AI + manufacturing.

About Us

Leanplans is a fast-growing AI company focused on vertical large model development. Our core R&D team comes from the Harbin Institute of Technology International AI Research Institute, with multiple patents and proprietary IP.

By combining AI large models with real-world manufacturing, we’ve developed the Leanplans AI Multi-Agent System—helping users in design visualization, DFM, cost estimation, and process optimization.

Through our digital system and cloud factory network, we provide an end-to-end solution for flexible production of multi-variety custom parts—from design to delivery.

*For business or investment inquiries, feel free to contact us.

Get a Free Quote!

Leave your contact details, or directly visit our online quoting platform to experience the future of material selection and production. Get expert material evaluations, tailored DFM analysis, and fast 24-hour production turnaround.

• Free Quote: Upload your designs, and our AI-powered engine will generate a custom quote in seconds.
• Talk to an Expert: Connect with one of our engineers via WhatsApp for immediate assistance.

Please enable JavaScript in your browser to complete this form.

Name *

Company or Organization *

Email *

Phone *

Address

What service(s) are you interested in? *

Please tell us the service you would like quoted?

Submit

Robots Aren’t Just Assembled—They’re Refined Through Trial and Error

For German startup Mech Robotics, building a fully functional humanoid robot prototype isn’t just about CAD designs and mechanical assembly. It’s a continuous loop of prototyping, iteration, structural optimization, and tight collaboration between design and manufacturing teams.

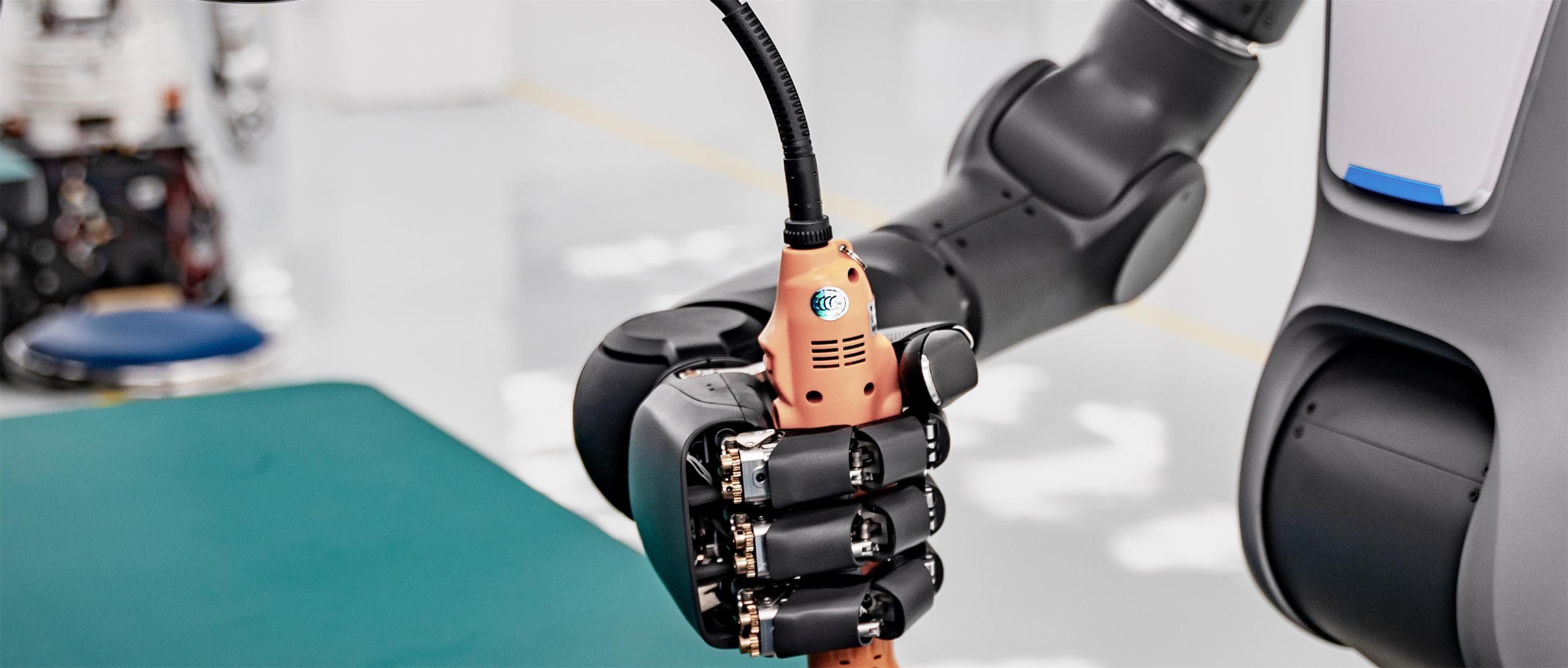

The company’s latest prototype, M-01, is designed for assistive and collaborative scenarios in healthcare and industrial environments. It features 17 degrees of freedom, modular drive units, and a multi-sensor fusion platform. Ahead of a major robotics technology exhibition in April, the team urgently needed to prototype joint reducer housings and servo module brackets for final validation and assembly testing.

The Challenge: From “Beautiful Design” to “Manufacturable Reality”

In the initial design, several mounting holes required ultra-tight tolerances of ±0.01 mm, along with complex chamfers and slot features—all intended to ensure precise assembly. However, these perfectionist specifications introduced serious manufacturing challenges, leading to skyrocketing costs (40% over budget) and unacceptable delays in lead time.

Some components were originally designed in aluminum 7075 due to its high strength. However, this material is difficult to machine, not ideal for anodizing, and poorly suited for repeated disassembly—particularly for a tradeshow prototype. In short, the design was overengineered, adding cost and complexity without clear functional benefit.

The Solution: From Supplier to Engineering Collaborator

Referred by peers in the industry, Mech Robotics approached us—Leanplans—for support. As a manufacturing partner experienced with humanoid robotics, we understood that the client didn’t just need parts; they needed a design-aware manufacturing solution.

Our Leanplans Multi-Agent System delivered the first DFM report within 1 hour. A full DFM review followed within 24 hours, along with a remote design meeting between our engineers and Mech’s structural team. We proposed three key optimizations:

• Structural simplification: Replacing sharp, non-functional corners with standard R2 radii to reduce toolpath complexity and tool changes
• Tolerance relaxation: Maintaining ±0.02 mm only on key mating surfaces, loosening others to ±0.05 mm, supported by dowel pin positioning
• Material substitution: Switching from all-aluminum brackets to SLS-printed carbon fiber PA12, reducing weight by 30% and lead time significantly

The Result: Faster Than Just Fast—Responsive and Aligned

Once the plan was finalized, we machined the joint housings using 5-axis CNC from aluminum 6061-T6, chosen for its balanced strength, machinability, and anodizing performance.

For the servo brackets, we used industrial-grade SLS 3D printing with carbon fiber reinforced PA12, offering high strength-to-weight ratio and excellent dimensional stability—ideal for lightweight hollow structures.

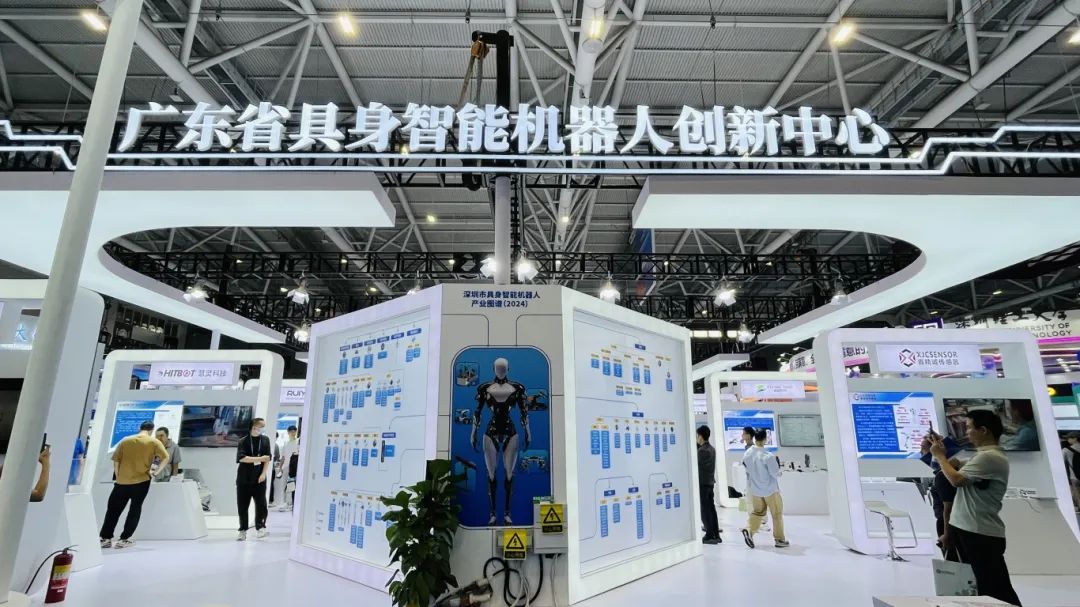

All parts were manufactured within 5 working days and delivered within 14 calendar days. CMM inspection confirmed that all key dimensions were within ±0.02 mm. At the exhibition, the robot was assembled smoothly and completed live demonstrations, drawing attention from investors and media.

“We were stuck in a mindset of building strictly to drawings,” the structural lead at Mech Robotics later shared. “Leanplans helped us realize what it means to design for manufacturing—it accelerated everything.”

Beyond Prototypes—A Partner That Builds With You

Though this project was a single-event prototype, it proved how critical it is for robotics startups to work with partners who understand both design intent and manufacturing reality.

At Leanplans, we’re supporting a wide range of robotics teams—humanoids, quadrupeds, and special-purpose robots—with everything from drive unit frames and end effectors to perception module housings. Our services span DFM consultation, material selection, process matching, and multi-process rapid prototyping.

If you’re facing the gap between what you can imagine and what you can build, send us your drawing. Sometimes one round of feedback is all it takes to find a faster, smarter path forward.

Get a Free Quote!

Leave your contact details, or directly visit our online quoting platform to experience the future of material selection and production. Get expert material evaluations, tailored DFM analysis, and fast 24-hour production turnaround.

• Free Quote: Upload your designs, and our AI-powered engine will generate a custom quote in seconds.
• Talk to an Expert: Connect with one of our engineers via WhatsApp for immediate assistance.

Please enable JavaScript in your browser to complete this form.

Name *

Company or Organization *

Email *

Phone *

Address

What service(s) are you interested in? *

Please tell us the service you would like quoted?

Submit

In this article, we’ll explore what aluminum die casting is, how it works, what materials are commonly used, where it’s applied, and how to control quality. Whether you’re a design engineer, purchaser, or production manager, this guide will help you understand how to select the right aluminum die casting solution for your product.

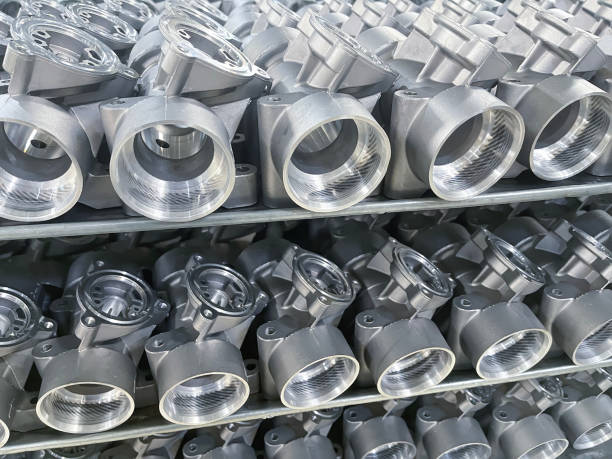

What Is Aluminum Die Casting?

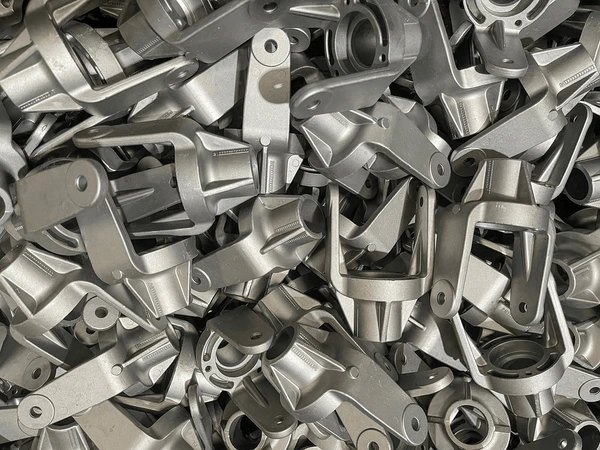

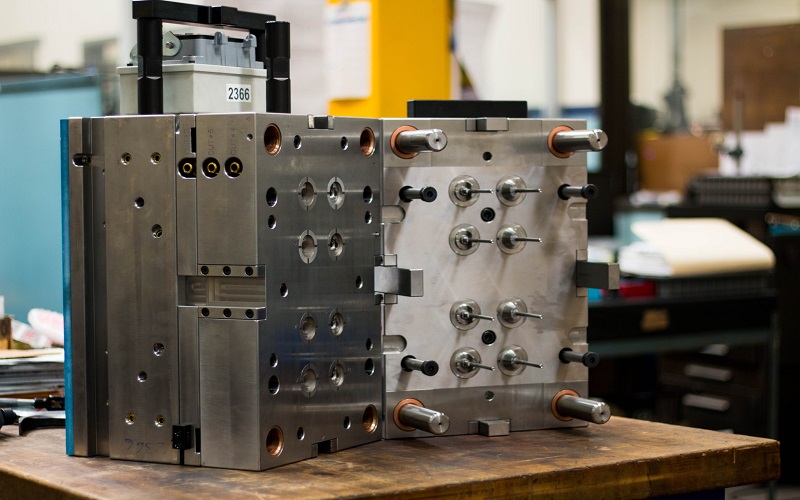

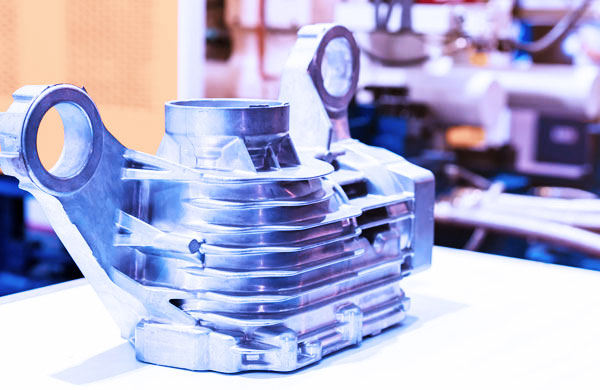

Aluminum die casting is a high-pressure metal casting process in which molten aluminum alloy is injected into a precision steel mold, called a die, at high speed. It’s known for its high efficiency, dimensional accuracy, and surface quality.

Key Benefits:

• • High production efficiency – Cycle times as low as 10–30 seconds per shot, ideal for mass production.
  • Tight tolerances – Typical dimensional accuracy of ±0.05 mm.
  • Excellent surface finish – Roughness (Ra) values around 1.6–6.3 μm, suitable for anodizing, painting, or plating.

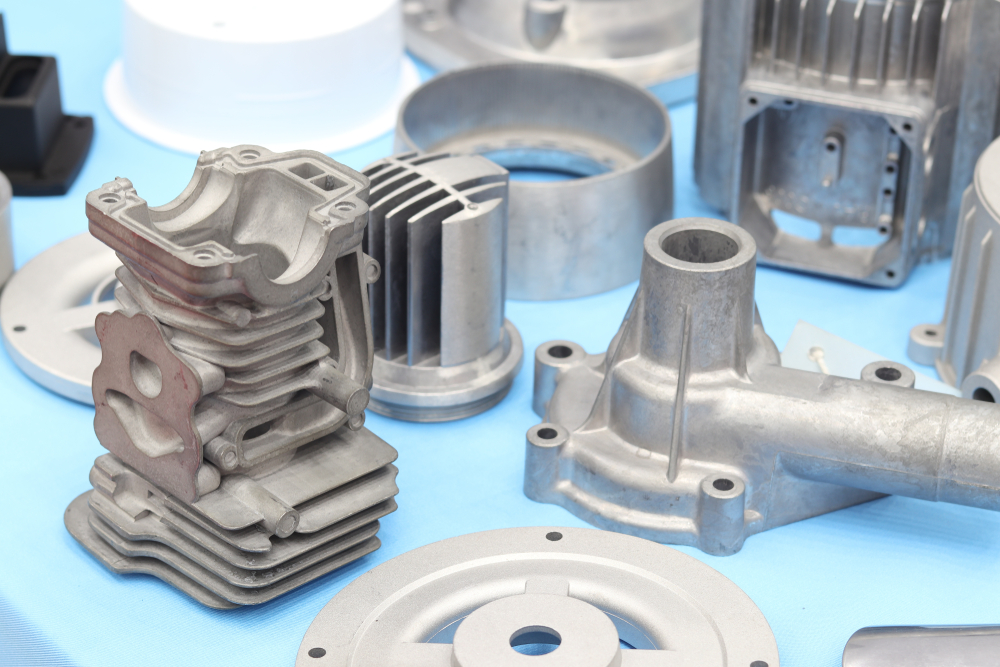

  • Structural integrity – Suitable for producing thin-walled, ribbed, and complex geometries with high strength.

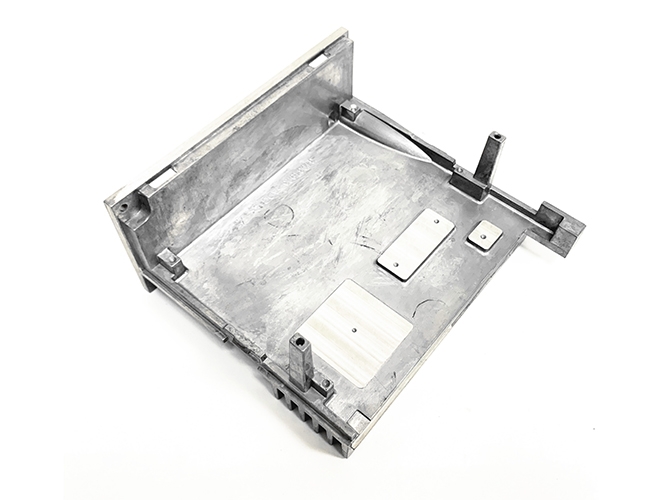

For example, aluminum die casting is commonly used to produce integrated enclosures for EV motor controllers, achieving both thermal performance and structural rigidity.

Common Aluminum Alloys for Die Casting

Most die casting aluminum alloys are silicon-based due to their excellent flow characteristics and mechanical strength. Here are some popular grades:

Choosing the right alloy depends on product requirements like mechanical strength, surface treatment compatibility, environmental resistance, and cost.

The Aluminum Die Casting Process: Step by Step

A standard aluminum die casting process includes the following stages:

1. Melting – Aluminum is heated to 660–720°C.
2. Die Preheating – Die is heated to 180–250°C to prevent cold shuts and porosity.
3. Injection – Molten aluminum is injected into the mold at speeds up to 6 m/s.
4. Cooling – Metal solidifies rapidly within seconds.
5. Ejection – The part is ejected using ejector pins.
6. Trimming – Flash and excess material are removed.
7. Secondary operations – Includes machining or surface finishing if required.

Critical Process Controls:

• Maintain proper die temperature for stable filling and shrinkage control.
• Use vacuum die casting or semi-solid casting for high-density parts with low porosity.
• Adjust injection speed and pressure to reduce air entrapment and improve surface finish.
• Regular die maintenance extends tool life (typically 30,000 to 100,000 cycles).

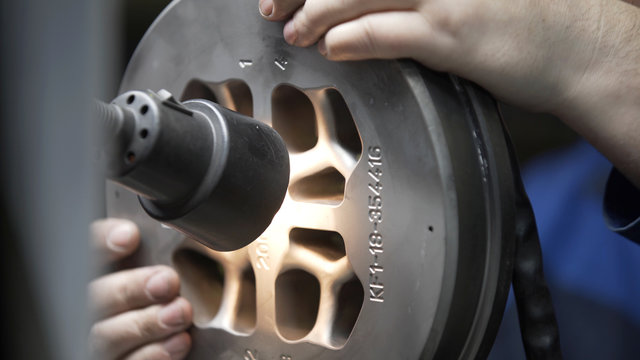

Post-Processing & Surface Finishing

Even with high dimensional accuracy, most die cast parts require post-processing for functionality or aesthetics.

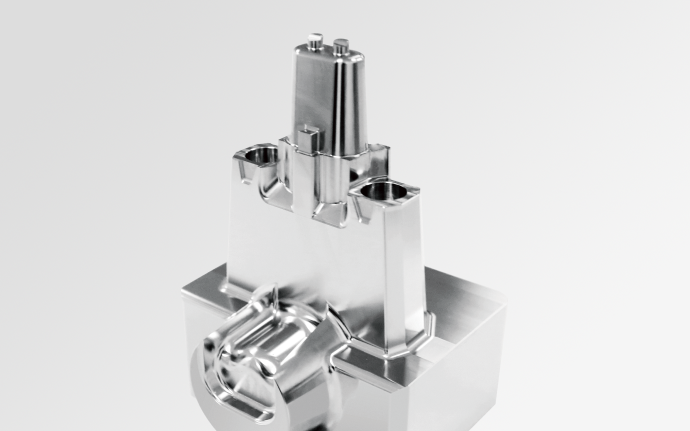

• CNC Machining – For critical holes, threads, and sealing surfaces.
• Deburring / Blasting – For removing flash and improving adhesion.

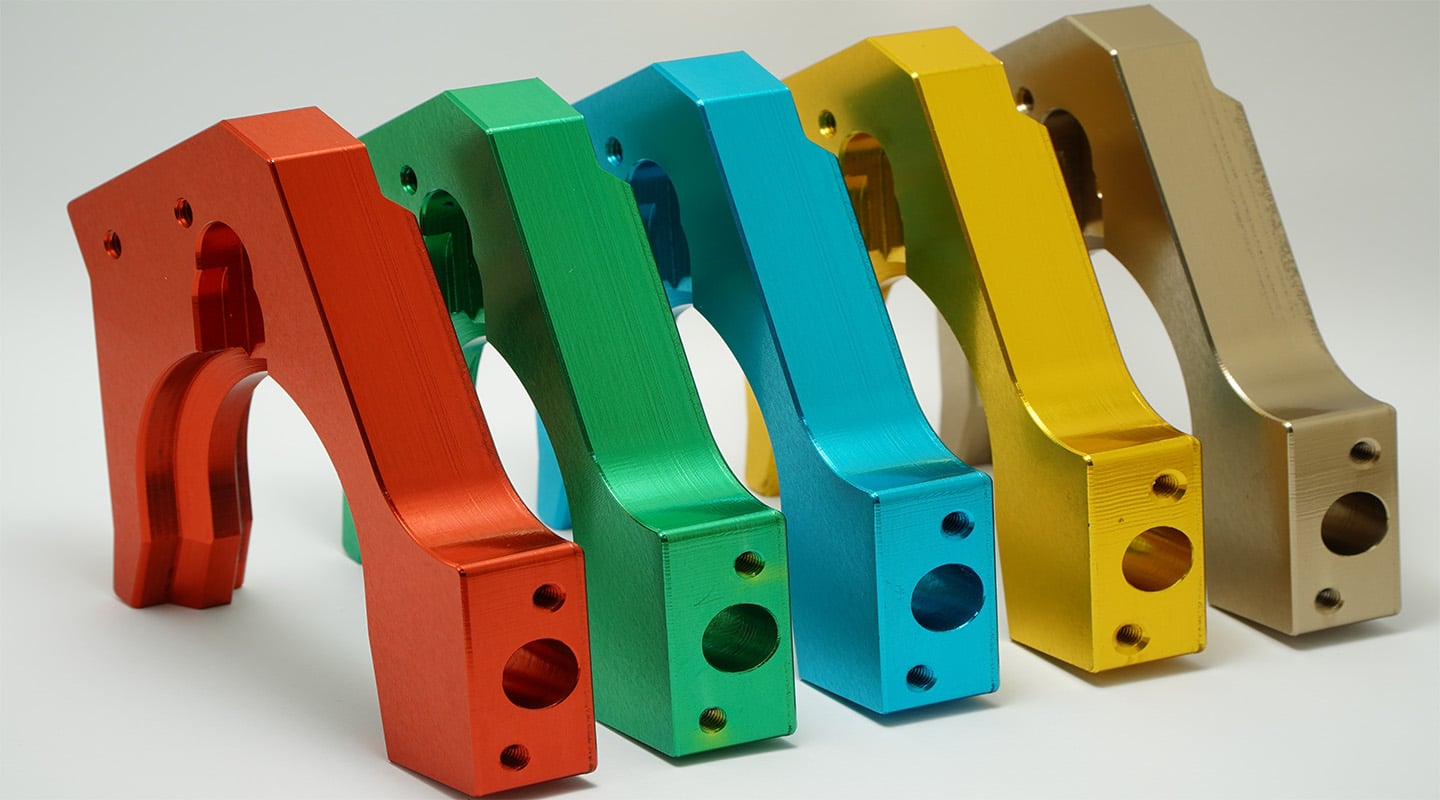

• Anodizing – For corrosion resistance and decorative finishes.
• Painting / Electrophoresis / Electroplating – For color and functional coatings.

Case Study: A well-known laptop manufacturer uses anodized ADC12 die cast bases to achieve seamless metal appearance, enhanced heat dissipation, and structural rigidity—all in one part.

Real-World Applications of Aluminum Die Casting

Automotive Industry

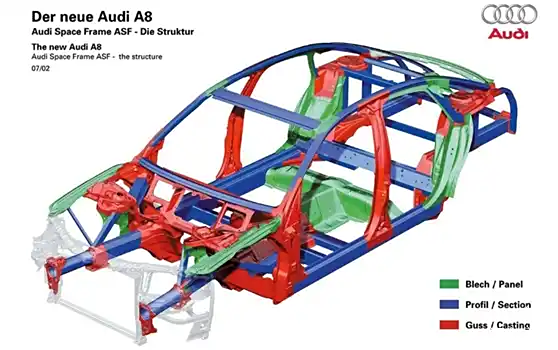

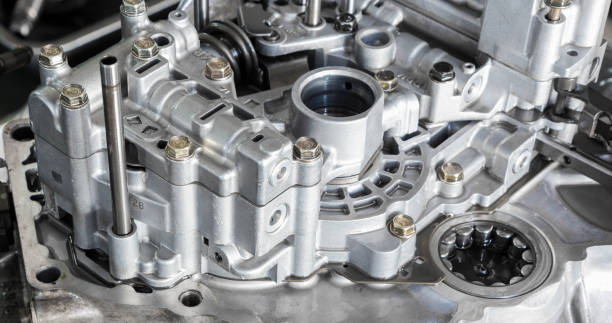

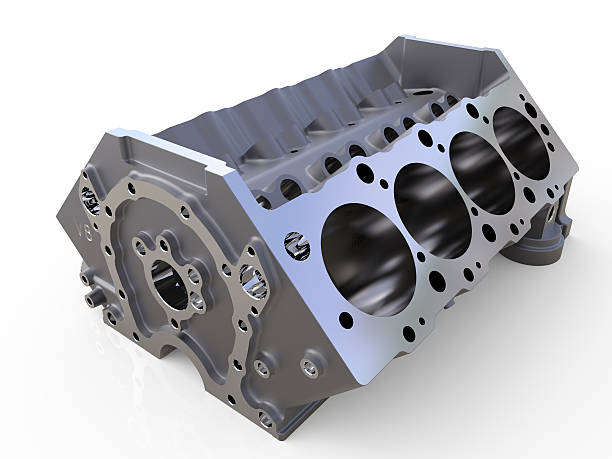

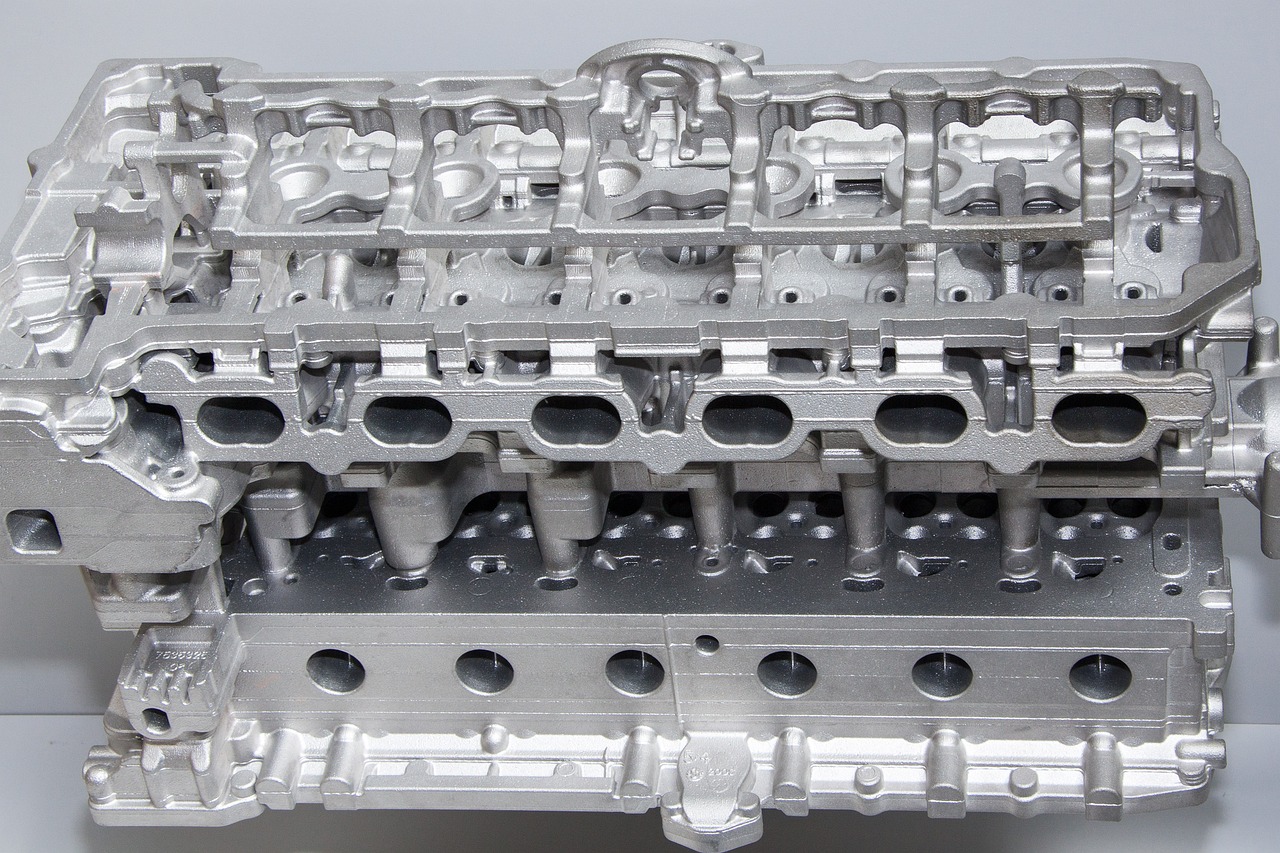

Used for EV battery housings, transmission cases, motor mounts, structural brackets. Helps reduce weight by 20–40% while maintaining strength.

Consumer Electronics

Smartphone frames, speaker housings, laptop bases—aluminum die casting supports ultra-thin designs with high-quality finishes.

Industrial Automation

Control boxes, heat sinks, gearboxes, and sensor housings require pressure tightness and thermal conductivity, ideal for die cast aluminum.

Medical Equipment

Enclosures and mechanical parts for devices requiring tight tolerances, reliability, and EMI shielding.

Quality Control in Aluminum Die Casting

Reliable quality assurance is essential for mission-critical components. Key inspection methods include:

• X-ray Inspection – Detects internal porosity or shrinkage defects.

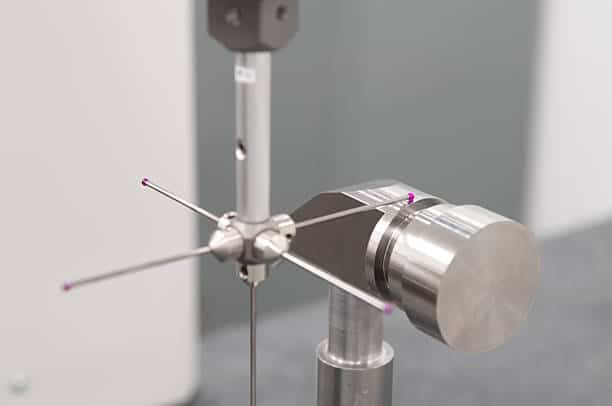

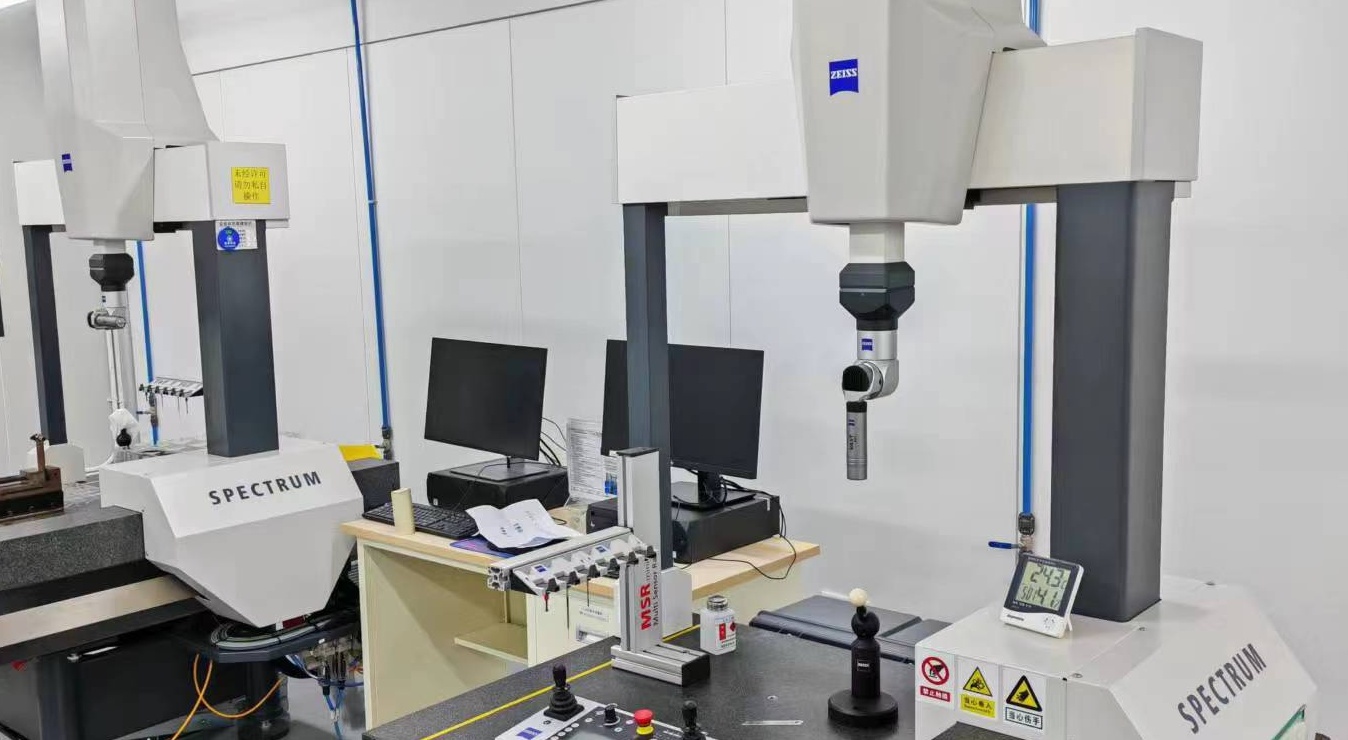

• CMM Measurement – Verifies dimensions, flatness, and concentricity.
• Surface Roughness (Ra) Testing – Ensures surface finish meets coating or sealing requirements.
• Leak Testing – For pressure-tight or waterproof components (IP65/IP67 standards).
• Tensile & Hardness Testing – Confirms mechanical performance.

Implementing a robust quality control system helps reduce rework, increase part reliability, and meet international standards (ISO/IATF16949).

Final Thoughts: Why Aluminum Die Casting Is the Future of Lightweight Manufacturing

Aluminum die casting is no longer just for simple housings. It’s becoming the preferred process for lightweight, complex, and performance-critical components. From electric vehicles to medical robotics, die cast aluminum allows engineers to design smarter, reduce cost, and scale production faster.

Get a Free Quote!

Leave your contact details, or directly visit our online quoting platform to experience the future of material selection and production. Get expert material evaluations, tailored DFM analysis, and fast 24-hour production turnaround.

• Free Quote: Upload your designs, and our AI-powered engine will generate a custom quote in seconds.
• Talk to an Expert: Connect with one of our engineers via WhatsApp for immediate assistance.

Please enable JavaScript in your browser to complete this form.

Name *

Company or Organization *

Email *

Phone *

Address

What service(s) are you interested in? *

Please tell us the service you would like quoted?

Submit
